up to 10 t
up to 3 people
6
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Vehicle length (mm)*** | 6,889 | 6,959 | 8,096 | 8,087 | 8,420 | 8,691 | 9,596 | 8,520 | 8,820 |
| Vehicle width (mm) | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 |
| Vehicle height (mm)*** | 3,476 | 3,370 | 3,477 | 3,476 | 3,633 | 3,489 | 3,484 | 3,648 | 3,468 |
| Wheelbases (mm) | 3,600–6,000 | 3,600–5,100 | 3,900–6,000 | 3,600–5,700 | 3,900–6,100 | 4,250–6,050 | 4,250–7,550 | 4,550–7,550 | 4,850–7,550 |
| Ground clearance (mm)*** | 286 | 280 | 293 | 236 | 280 | 228 | 228 | 312 | 312 |
| Angle of approach (°)*** | 22 | 28 | 15 | 22 | 27 | 15 | 18 | 28 | 28 |
| Angle of departure (°)*** | 12 | 32 | n. a. | 11 | n. a. | n. a. | 12 | 21 | 21 |
| Turning circle (m) curb to curb*** | 15.6 | 16.3 | 18.2 | 18.4 | 20.1 | 17.3 | 18.9 | 21.2 | 23.9 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Cab | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L |
| Seats | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) |
| Battery capacity (Ah) | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V |
| Tank volume (l) | 290/330/390/500 | 290–500 | 290–630 | 290–630 | 290–630 | 290–630 | 290–630 | 260–540 | 290–570 |
| AdBlue tank capacity (l) | 25/60 | 25/60 | 60/75 | 60 | 30–75 | 25/60 | 25/60 | 25–75 | 25–75 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Max. power according to DIN kW (hp) | 175 (238)–460 (625) | 175 (238)–390 (530)* | 200 (272)–460 (625) | 200 (272)–460 (625) | 240 (326)–460 (625) | 240 (326)–390 (530) | 265 (300)–460 (625) | 240 (326)–425 (578) | 240 (326)–460 (625) |
| Max. torque (Nm) | 1,100–3,000 | 1,000–2,330 | 1,100–3,000 | 1,100–3,000 | 1,700–3,000 | 1,700–2,600 | 1,800–3,000 | 1,700–2,800 | 1,700–3,000 |
| Max. permissible gross weight (t) | 18.0–22.0 | 16.5–22.0 | 25.0–37.0 | 26.0–36.0 | 26.0–41.0 | 32.0–40.0 | 32.0–37.0 | 32.0–48.0 | 32.0–48.0 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Euro norm | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI |
| Shifting | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift |
| Gearbox | G140-8/9.30-0.79; G211-12/14.93-1.0 | G140-8/9.30-0.79; G211-12/14.93-1.0 | G260-16/11.7-0.69; G230-12/11.7-0.78; G280-16/11.7-0.69; G281-12/14.93-1.0; G330-12/11.63-0.77 | G260-16/11.7-0.69; G280-16/11.7-0.69; G281-12/14.93-1.0; G330-12/11.63-0.77 | G 280-16/11.7-0.69; G 330-12/11.63-0.77 | G 230-12/11.7-0.78; G 280-16/11.7-0.69; G 281-12/14.93-1.0; G 330-12/11.63-0.77 | G 280-16/11.7-0.69; G 330-12/11.63-0.77 | G 230-12/11.7-0.78; G 260-16/11.7-0.69; G 280-16/11.7-0.69 | G 260-16/11.7-0.69; G 280-16/11.7-0.69; G 330-12/11.63-0.77 |
| Transfer gearbox | – | VG 1600-3W (permanent); VG 3000-3W (engageable) | – | – | VG 2800-3W/1.45-1.04 (permanent); VG 3000-3W/1.04 (engageable) | – | – | VG 2800-3W/1.45-1.04 (permanent); VG 3000-3W/1.04 (engageable) | VG 2800-3W/1.45-1.04 (permanent) |
| Cylinders | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Engine (Displacement (I)) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | |
| CTIS | – | x | – | – | x | – | – | – | x | |
| Front axle load (min–max) (t) | 7.1–10.0** | 7.1–10.0** | 7.1–10.0** | 6.3–10.0** | 7.1–10.0** | 2 x 7.5–10.0** | 2 x 6.3–10.0** | 2 x 7.5–10.0** | 2 x 7.5–10.0** | |
| Rear axle load (min–max) (t) | 11.5–13 .0 | 9.0–13.0 | 2 x 7.1–13.0 | 2 x 9.5–10.5 | 2 x 9.0–16.0 | 2 x 7.5–13.0 | 2 x 9.0–13.0 | 9.0–16.0 | 9.0–16.0 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Steering | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL |
| Roof hatch | x | x | – | – | x | – | – | x | x |
| Weapon holder | x | x | x | x | x | x | x | x | x |
| Blackout light | x | x | x | x | x | x | x | x | x |
| Fording capability (mm) | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
* depending on the engine
** via CTT with mileage limitation
*** with M cab Classic flatbed and standard tyres (315/ 70 R 22.5 or 315/ 80 R 22.5) depending on the load and load distribution
Vehicle concept
For medium-duty operations.

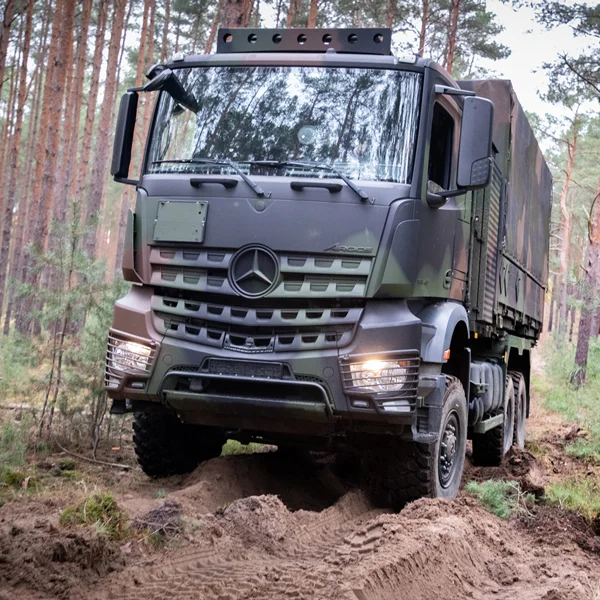

The Arocs is the heavyweight of military logistics. As a 4×4 to 8×8 chassis, it transports payloads of up to around 27 tonnes. Powerful six-cylinder in-line engines of up to 460 kW (625 hp), all-wheel drive, differential locks and heavy-duty hub reduction axles ensure off-road capability and high ground clearance – for the most demanding logistical tasks.
The Arocs platform for medium-duty operations forms a robust backbone for basic logistics and central defence hubs, combining high payload with long-distance haulage competence. Users include, among others, the German Armed Forces.
Wheelbases
Arocs variants.
Max. power
up to 460 kW (625 hp)
Max. torque
up to 3,000 Nm
Max. permissible gross weight
up to 41 t
Cylinders
6
Max. front axle load
10 t
Max. rear axle load
16 t
The Arocs platform combines permanent all-wheel drive, heavy-duty hub reduction axles and differential locks that can be operated while driving – for best-possible traction and ground clearance in the most demanding conditions.
- Heavy-duty hub reduction axles for high ground clearance and durability
- Permanent all-wheel drive for best-possible traction
- Differential locks and inter-axle differential locks can be operated while driving
- Choice of single tyres for optimal off-road performance
- Special options available for extreme climatic conditions (air intake pre-heaters, high-performance radiators)
- Optional part-time front-wheel drive or hydraulic auxiliary drive at the front axle
Approach angle up to
28 °
Departure angle up to
32 °
Ground clearance up to
312 mm
Fording capability
700 mm
OM 460 LA
- Powerful and efficient 6-cylinder in-line engines, ranging from 175 kW (238 hp) to 260 kW (354 hp)
- Up to 2,600 Nm torque
- Strong engine brake, optional retarder
- Engine types available for low-quality fuel or kerosene
- Certified to Euro III, IV, V or VI emission standardsMercedes-Benz PowerShift for automatic gear selection
- Option: cable PowerShift for manual gear selection
Mercedes-Benz PowerShift 3
- Mercedes-Benz PowerShift for automatic gear selection
- Option: cable PowerShift for manual gear selection
- Various cabs, three lengths and four roof heights
- 100% galvanised for long-lasting corrosion protection
- Fording capability: 700 mm
- Blackout lighting circuit: stealth lighting for covert operations
- Swivel-type roof hatch: plus special centre seat/standing platform
- Transport lugs: for air, rail and sea transport of vehicles
- Towing and recovery equipment: for self-recovery and assisting other vehicles
- ADR equipment: features for transport of hazardous goods; battery main switch included
- Weapon brackets: standardised mounts
- Spare wheel holder: integrated spare wheel storage
Optimum conversion ex-works for operation as a heavy-duty hauling/transport vehicle. Use of the dry clutch when driving continuously reduces fuel consumption and allows an emergency operating mode.
Options:
- Additional cooling system for safe operation at full power at high ambient temperatures
- Independent hydraulic supply for trailer
- Cardanic and height-adjustable semi-trailer couplings
- Fuel capacity of up to 1,200 l
