up to 5 t
up to 7 people
up to 800 mm
| Type | 4x4 | 4x4 (Atego 1430) |
|---|---|---|
| Vehicle width (mm) | 2.500 | 2.500 |
| Wheelbase (mm) | 3,260–4,760 | 3,260–4,760 |
| Ground clearance (front/rear) (mm)* | – | 300/270 |
| Angle of approach (°)* / Angle of departure (°)* | – | 27/37* |
| Ramp angle (°)* | – | 20–25 |
* depending on tyres, equipment, bodywork etc.
| Type | 4x4 | 4x4 (Atego 1430) |
|---|---|---|
| Cab | S cab (short), crew cab | S cab (short), crew cab |
| Seats | up tp 7 | up to 7 |
| Tank volume (l) | 120–180 | 180 |
| Type | 4x4 | 4x4 (Atego 1430) |
|---|---|---|
| Power (min–max) (kW (hp)) | 115–220 (156–299) | 220 (299) |
| Max. torque (Nm) | 900–1,200 | 1,200 |
| Gross vehicle weight (t) | 15.6–16.0 | 14 |
| Type | 4x4 | 4x4 (Atego 1430) |
|---|---|---|
| Euro norm | VI | VI |
| Gearbox | 6- or 8-speed manual transmissio / PowerShift 3 (automated) / Allison fully automatic transmission | PowerShift 3 (automated) |
| Cylinders | 4, 6 | 6 |
| Displacement (cm³) | 5.1–7.7 | 7.7 |
| Engine | OM 934, OM 936 | OM 936 |
| Type | 4x4 | 4x4 (Atego 1430) |
|---|---|---|
| Front axle load (max) (t) | 6.1 | 6.1 |
| Rear axle load (max) (t) | 8 (single tyres), 10 (twin tyres) | 8 (single tyres) |
| Type | 4x4 | 6x4 |
|---|---|---|
| Fording capability (mm) | 600, optionally up to 800 | 600, optionally up to 800 |
| Gradeability | up to 80% | up to 80% |
| Differential axles | – | on front and rear axles as well as transfer case |
| All-wheel drive | permanent or selectable | permanent or selectable |
Vehicle concept
Capability Without Compromise.

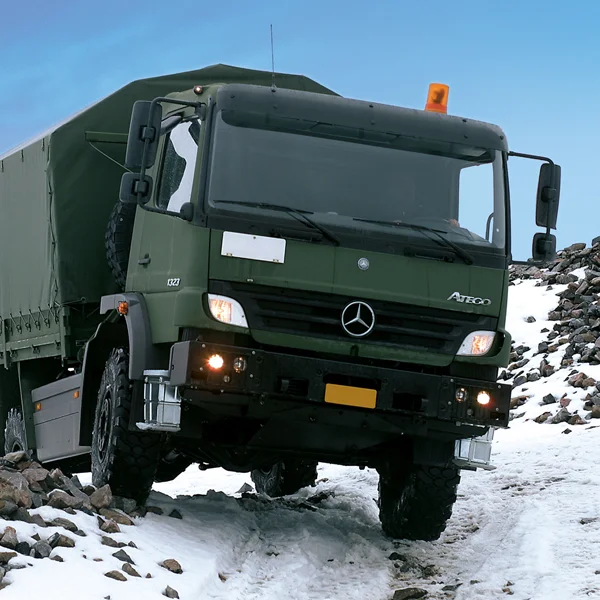

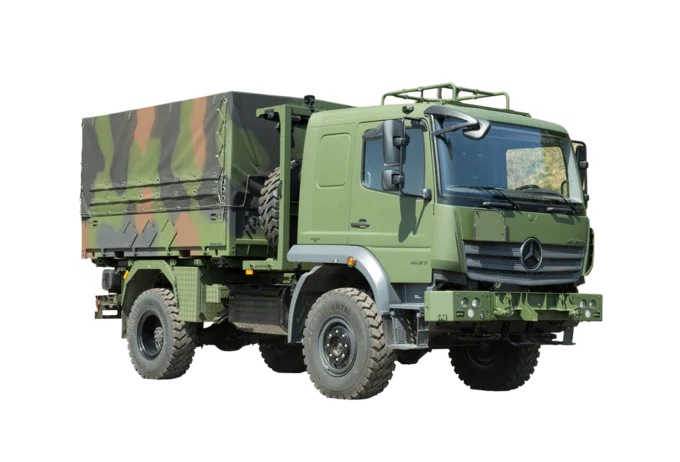

The Atego covers light-duty applications: as a 4x4 chassis, it carries up to 5 tonnes of payload and provides space for up to six people. Military-specific options such as fording capability, stealth lights, transport eyes, recovery and towing equipment, spare wheel holder and tyre pressure control system, options for challenging fuel characteristics and the almost worldwide service network mean that Mercedes-Benz Defence Trucks can be deployed all over the world.
The Atego A-model series forms a robust backbone for basic logistics and central defence hubs, combining high payload with long-distance haulage competence.
Wheelbases
Atego variants.
Max. power
up to 260 kW (354 hp)
Max. torque
up to 2,600 Nm
Seats
up to 7
Cylinders
6
Fuel capacity
up to 1,200 l
Euro norm
VI
Whether on paved roads or unpaved terrain, the Atego delivers reliable all-wheel drive performance for demanding operations. Military-specific equipment options ensure maximum mobility – from basic logistics in rear areas to front support space operations.
- 4x4 all-wheel drive
- Fording capability
- Tyre pressure control system (optional)
- Options for challenging fuel characteristics
- Euro VI
Approach angle up to
28 °
Departure angle up to
32 °
Ground clearance up to
280 mm
Fording capability
800 mm
OM 460 LA
- High-torque 4 and 6-cylinder engines
- Output range from 115 kW (156 hp) to 220 kW (299 hp)
- Dynamic maintenance computer for up to 120,000 km
- Designed for low maintenance and repair costs
- Engine types available for low-quality fuel or kerosene
- Certified to the Euro VI emission standard
- Choice of 6, 8, and 9-speed transmission for drive systems
- Manual shift
- PowerShift 3 (optional)
- Short S-cab or large L-cab, crew cab
- For up to 6 passengers plus equipment
- 100% galvanised for long-lasting corrosion protection
- Fording capability: 800 mm
- Blackout lighting circuit: stealth lighting for covert operations
- Swivel-type roof hatch: plus special centre seat/standing platform
- Transport lugs: for air, rail and sea transport of vehicles
- Towing and recovery equipment: for self-recovery and assisting other vehicles
- ADR equipment: features for transport of hazardous goods; battery main switch included
- Weapon brackets: standardised mounts
- Spare wheel holder: integrated spare wheel storage
Daimler Truck offers far more than just vehicles. Our service portfolio ensures that your fleet remains operational worldwide.
Approximately 3,000 authorised workshops in over 160 countries. Worldwide spare parts availability guaranteed.
Full IPS/ILS and CLS capabilities. IPS/ILS packages incl. ISS. Requirements analysis & individual planning.
Field Service Representatives directly in the operational area. Long-term logistics support across the entire vehicle life.
Train-the-Trainer programme by Mercedes-Benz Truck professionals. Individual fleet management solutions & retrofit.
Do you need further information on our individual solution? It's best to talk to an expert. We analyse your requirements and put together a customised package.
