up to 5 t
up to 3 people
between 1 and 90 km/h
| Type | U 4023 | U 5023 | U 4000 | U 5000 |
|---|---|---|---|---|
| Vehicle length (mm) | 5,950 | 5,950 | 5,350/5,950 | 5,400/6,000 |
| Vehicle width (mm) | 2,340 | 2,402 | 2,336 | 2,354 |
| Vehicle height (mm)* | 2,760 | 2,873 | 2,657 | 2,731 |
| Wheelbase (mm) | 3,850 | 3,850 | 3,250/3,850 | 3,250/3,850 |
| Ground clearance (mm) | 410 | 460 | 420 | 490 |
| Angle of approach (°)* | 41 | 46 | 41 | 45 |
| Angle of departure (°)* | 45 | 50 | 45 | 49 |
| Ramp angle (°)* | 27 | 36 | 35 | 35 |
| Tilt angle (°)* | 38 | 38 | 38 | 41 |
| Turning circle (m) curb to curb | 16.3 | 16.4 | 14.5/16.4 | 14.5/16.3 |
| Type | U 4023 | U 5023 | U 4000 | U 5000 |
|---|---|---|---|---|
| Cab | single cab/crew cab | single cab/crew cab | single cab/crew cab | single cab/crew cab |
| Seats | up to 7 | up to 7 | up to 7 | up to 7 |
| Battery capacity (Ah)* | 100/170 | 100/170 | 74/100/125 | 74/100/125 |
| Generator output (A) | 150 | 150 | 100 | 100 |
| Tank volume (l) | 145/220 | 145/220 | 145/180 | 145/180 |
| AdBlue tank capacity (l) | 25 | 25 | 18 | 18 |
| Type | U 4023 | U 5023 | U 4000 | U 5000 |
|---|---|---|---|---|
| Max. power according to DIN (kW (hp)) | 170 (231) | 170 (231) | 130 (177)/163 (222) | 163 (222) |
| Max. torque (Nm) | 900 | 900 | 675/810 | 810 |
| Max. permissible gross weight (t) | 7.5/9.8 | 12.5/12.7/13.0 | 7.5/9.5 | 12.5/13.0 |
| Max. payload (t) | 2.5 | 4.5 | 3.0 | 5.0 |
| Permissible gross train weight (t) | 18.7/25.7 | 31.0/34.0 | 18.7/23.7 | 30.0/32.0 |
| Type | U 4023 | U 5023 | U 4000 | U 5000 |
|---|---|---|---|---|
| Euro norm | VI | VI | III/V | III/V |
| Gearshift type | electric, automatic shift (EAS) | electric, automatic shift (EAS) | electric, pneumatic shift (EPS) | electric, pneumatic shift (EPS) |
| Gearbox | UG 100-8 | UG 100-8 | UG 100-8 | UG 100-8 |
| Cylinders | 4 | 4 | 4 | 4 |
| Displacement (cm³) | 5,132 | 5,132 | 4,800 | 4,800 |
| Engine | OM 934 | OM 934 | OM 924 LA | OM 924 LA |
| Type | U 4023 | U 5023 | U 4000 | U 5000 |
|---|---|---|---|---|
| Axle type | portal axle | portal axle | portal axle | portal axle |
| Front axle load (min–max) (t) | 4.1–4.6 | 5.5–5.8 | 4.0–4.4 | 5.5–5.5 |
| Rear axle load (min–max) (t) | 4.6–5.0 | 7.1–7.5 | 4.4–5.3 | 7.1–7.5 |
| Tyre pressure regulation system | optional, fully integrated | optional, fully integrated | optional, fully integrated | optional, fully integrated |
| Run-flat tyres | optional | x | optional | x |
| Type | U 4023 | U 5023 | U 4000 | U 5000 | |
|---|---|---|---|---|---|
| Roof hatch | x | x | x | x | |
| Weapon holder | x | x | x | x | |
| IR coating | x | x | x | x | |
| Camouflage light | x | x | x | x | |
| Air transportability in C130 (Hercules) 276 cm | optional | – | x | optional | |
| Poor fuel ability | – | – | x | x | |
| Fording capability | 800 mm series; 1,200 mm optional | 800 mm series; 1,200 mm optional | 800 mm series; 1,200 mm optional | 800 mm series; 1,200 mm optional |
* Data with standard tyres U 5000/U 5023 (365/80 R20 – 365/85 R 20) and U 4000/U 4023 (335/80R 20) depending on the load and the load release

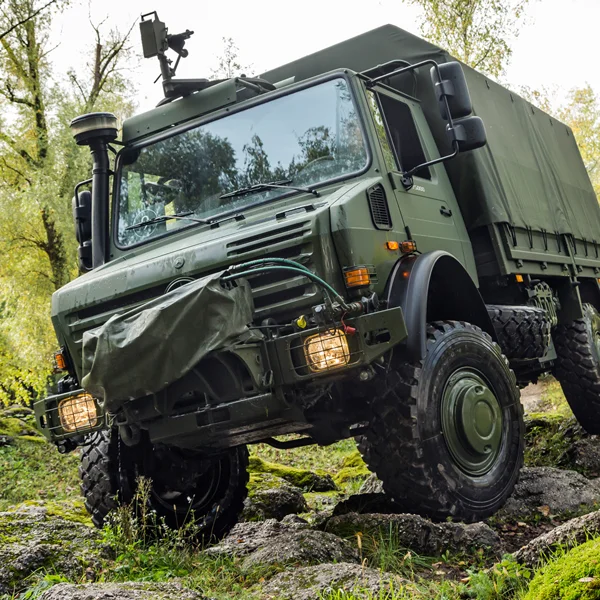

Vehicle concept
Built for extremes.
For 80 years, the Unimog has stood for exceptional off-road capability. Armed forces all over the world use it as a troop and logistics vehicle. With a payload of up to 5 tonnes and a fording capability of up to 1.2 metres, it is suitable as a carrier for pioneer, CBRN or fire service and ambulance bodies as well as civil protection.
The Unimog also stands out with its extreme versatility and robustness. With its all-wheel drive, portal axles and high ground clearance, it masters even difficult terrain with ease.
Wheelbases
Unimog variants.
Fording capability
up to 1,200 mm
Climbing capacity
up to 100%
Seats
up to 7
Cylinders
6
Axle type
portal axle
Payload
up to 5 t
With its all-wheel drive, portal axles and high ground clearance, the Unimog masters even difficult terrain with ease. It takes over wherever a high degree of off-road capability, compact dimensions and versatile body options are required.
- Welded heavy-duty torsionally flexible frame
- Integrated 3-point-mountings for bodies, engine, gearbox and cab suspensions
- Portal axles with coil springs for high ground clearance
- Thrust-tube-protected and robust powertrain
- Short frame overhangs at the front and rear allow large angles of approach and departure
- 100 % grade climbing ability
- Option: fording capability of up to 1,200 mm
- Tyre pressure control system allows adjustment of tyre pressure while driving
Approach angle up to
46 °
Departure angle up to
50 °
Ground clearance up to
490 mm
Optional fording capability
1,200 mm
OM 460 LA
- Fuel-efficient engines with up to 170 kW (231 hp), 900 Nm torque
- Engines certified from Euro III to Euro VI emission standards
- Engine types available for low-quality fuel or kerosene
- Extended maintenance intervals of 1,400 hours for low maintenance costs and high vehicle availability
- Engine and/or gear box PTO’s optional as a mechanical interface e.g. for driving hydraulic pumps
- High-performance engine brake reduces heating and wear of service brake
- Fully synchronised manual transmission with 8 forward and 6 reverse gears for highly responsive speed adjustment on and off-road
- Low range gears for speed adjustment from 1 to 90 km/h on off-road terrain
- 2-pedal electronic automated shifting (EAS) system eliminates need for manual gearshift and reduces clutch wear
- Electronic quick reverse
Crew Cab available
- Short bonnet design
- All-steel cab
- Seating for up to three people (standard cab)/seven people (crew cab)
- Ergonomic seating position behind the front axle reduces vibration stress on crew
- Roof hatch allows access to roof attachments from inside the cab
