up to 30 t
up to 10 km/h
up to 3 people
| Type | U 319 | U 423 |
|---|---|---|
| Wheelbases (mm) | 3,000 | 3,000/3,150/3,600 |
| Vehicle length (mm) | 4,980 | 4,980/5,130/5,575 |
| Vehicle width (mm) | 2,200 | 2,200 |
| Vehicle height (mm) | 2,870 | 2,925 |
| Front-end centre of axle (mm) | 1,065 | 1,060 |
| Ground clearance (mm) | 330 | 385 |
| Angle of approach (°) | 25 | 29 |
| Angle of departure (°) | 37 | 42 |
| Turning circle (m) curb to curb | 13.7 | 13.7/14.3/16.5 |
| Type | U 319 | U 423 |
|---|---|---|
| Battery capacity (Ah) | 140 | 140 |
| Tank volume (l) standard (optional) | 145 (200) | 145 (200) / 200 (250) |
| AdBlue tank capacity (l) | 25 | 25 |
| Type | U 319 | U 423 |
|---|---|---|
| Max. Power according to DIN (kW) | 140 | 170 |
| Max. Power (hp) | 190 | 231 |
| Max. Torque (Nm) | 750 | 900 |
| Type | U 319 | U 423 |
|---|---|---|
| Euro norm | VIe | VIe |
| Cylinder | 4 | 4 |
| Displacement (cm³) | 5,132 | 5,132 |
| Engine | OM 934 | OM 934 |
| Type | U 319 | U 423 |
|---|---|---|
| Standard tyres (tyres/rims) | 315/80 R22.5 | 315/80 R22.5 |
| Smallest tyres (tyres/rims) | 295/60 R22.5 | 315/80 R22.5 |
| Largest tyres (tyres/rims) | 425/75 R20 | 445/70 R24 |
| Max. Weight on front axle (t) | 5.5 | 7.0/7.1 |
| Max. Weight on rear axle (t) | 6.0 | 8.0 |
Basic range.
| Type | U 319 | U 319 | U 423 | U 423 |
|---|---|---|---|---|
| Direction | forward | reverse | forward | reverse |
| Basic range 1 | 7.1 | 4.7 | 7.2 | 4.8 |
| Basic range 2 | 10.2 | 6.7 | 10.5 | 6.9 |
| Basic range 3 | 15.5 | 10.2 | 15.9 | 10.4 |
| Basic range 4 | 21.1 | 13.8 | 21.6 | 14.2 |
| Basic range 5 | 31.0 | 20.4 | 31.7 | 20.8 |
| Basic range 6 | 44.7 | 29.4 | 45.7 | 30.0 |
| Basic range 7 | 67.8 | – | 69.4 | 45.6** |
| Basic range 8 | 92.1* | – | 94.3* | 61.9** |
Working gears.
| Type | U 319 | U 319 | U 423 | U 423 |
|---|---|---|---|---|
| Direction | forward | reverse | forward | reverse |
| Working gears (special equipment) 1 | 1.23 | 0.81 | 1.26 | 0.83 |
| Working gears (special equipment) 2 | 1.77 | 1.17 | 1.82 | 1.19 |
| Working gears (special equipment) 3 | 2.69 | 1.77 | 2.75 | 1.81 |
| Working gears (special equipment) 4 | 3.66 | 2.4 | 3.74 | 2.46 |
| Working gears (special equipment) 5 | 5.38 | 3.54 | 5.51 | 3.62 |
| Working gears (special equipment) 6 | 7.76 | 5.1 | 7.95 | 5.22 |
| Working gears (special equipment) 7 | 11.7 | 7.73 | 12.0 | 7.92 |
| Working gears (special equipment) 8 | 16.0 | 10.5 | 16.3 | 10.7 |
Crawler gears.
| Type | U 319 | U 319 | U 423 | U 423 |
|---|---|---|---|---|
| Direction | forward | reverse | forward | reverse |
| Crawler gears (special equipment) 1 | 0.13 | 0.08 | 0.13 | 0.09 |
| Crawler gears (special equipment) 2 | 0.18 | 0.12 | 0.19 | 0.12 |
| Crawler gears (special equipment) 3 | 0.28 | 0.18 | 0.28 | 0.19 |
| Crawler gears (special equipment) 4 | 0.38 | 0.25 | 0.39 | 0.25 |
| Crawler gears (special equipment) 5 | 0.55 | 0.36 | 0.57 | 0.37 |
| Crawler gears (special equipment) 6 | 0.8 | 0.53 | 0.82 | 0.54 |
| Crawler gears (special equipment) 7 | 1.21 | 0.80 | 1.24 | 0.82 |
| Crawler gears (special equipment) 8 | 1.65 | 1.08 | 1.69 | 1.11 |
Off-road gears.
| Type | U 319 | U 319 | U 423 | U 423 |
|---|---|---|---|---|
| Direction | forward | reverse | forward | reverse |
| Off-road gear 1 | 2.22 | 1.46 | 2.27 | 1.49 |
| Off-road gear 2 | 3.2 | 2.11 | 3.28 | 2.15 |
| Off-road gear 3 | 4.86 | 3.19 | 4.97 | 3.27 |
| Off-road gear 4 | 6.61 | 4.34 | 6.76 | 4.44 |
| Off-road gear 5 | 9.72 | 6.39 | 9.95 | 6.54 |
| Off-road gear 6 | 14.02 | 9.21 | 14.35 | 9.43 |
| Off-rad gear 7 | 21.26 | 13.97 | 21.58 | 19.43 |
| Off-rad gear 8 | 28.9 | 18.99 | 29.58 | 19.43 |
* Vmax = 90 km/h
** Only in road-rail mode
Driving speeds may vary with different tyres
Vehicle concept
80 YEARS OF RELIABILITY. NOW ON THE RUNWAY.
For 80 years, the Unimog has stood for exceptional off-road capability. Armed forces all over the world use it as a troop and logistics vehicle. With its all-wheel drive, portal axles and high ground clearance, it masters even difficult terrain with ease.

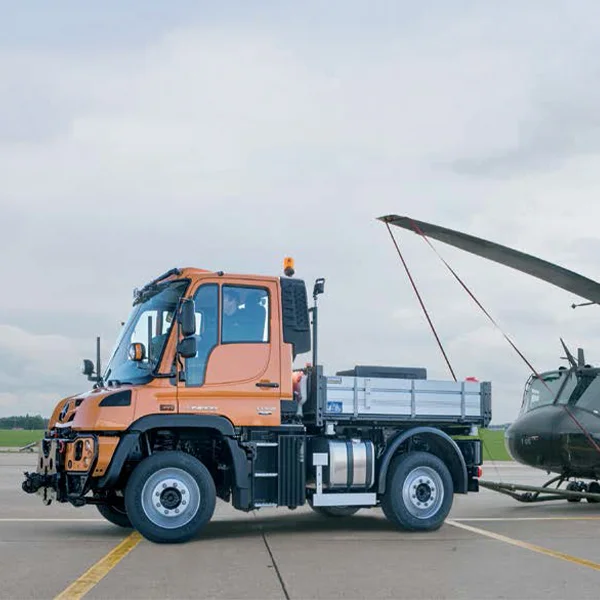

The Unimog airfield tractor brings this legendary reliability to the airfield – ready for unbraked towing and challenging tasks.
Wheelbases

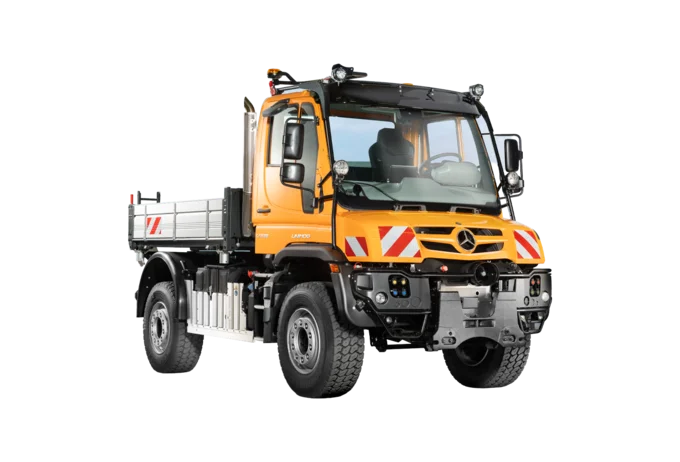

Unimog Airfield variants.
Angle of approach
up to 29°
Andle of departure
up to 42°
Turning circle curb to curb
from 13.7 m
Tank volume
up to 250 l
Power
up to 231 hp
Torque
up to 900 Nm
The Unimog airfield tractor is specifically designed for towing aircraft of all sizes – with a torque converter for smooth heavy-duty towing and a special towing mode for safe operation.
- Torque converter for smooth heavy-duty towing
- Special towing mode ensures smooth starting and safe towing up to 10 km/h
- Front mounting plate (DIN EN 15432, type F1c), with height-adjustable NATO coupling
- Rear towing interface with two height-adjustable NATO couplings
- Excellent weight balance for towing and operation of implements
OM 934
- State-of-the-art Euro VI diesel engine with 140 kW (190 hp)
- Exhaust system with spark arrestor to DIN EN 1834 -1
- Euro VI emission standard
- Excellent visibility of implements and towing rod via innovative cab design
- Heated rear window
- Camera system for outstanding visibility
