up to 250 t
up to 3 people
up to 625 hp
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Vehicle length (mm)*** | 6,889 | 6,959 | 8,096 | 8,087 | 8,420 | 8,691 | 9,596 | 8,520 | 8,820 |
| Vehicle width (mm) | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 | 2,500 |
| Vehicle height (mm)*** | 3,476 | 3,370 | 3,477 | 3,476 | 3,633 | 3,489 | 3,484 | 3,648 | 3,468 |
| Wheelbases (mm) | 3,600–6,000 | 3,600–5,100 | 3,900–6,000 | 3,600–5,700 | 3,900–6,100 | 4,250–6,050 | 4,250–7,550 | 4,550–7,550 | 4,850–7,550 |
| Ground clearance (mm)*** | 286 | 280 | 293 | 236 | 280 | 228 | 228 | 312 | 312 |
| Angle of approach (°)*** | 22 | 28 | 15 | 22 | 27 | 15 | 18 | 28 | 28 |
| Angle of departure (°)*** | 12 | 32 | n. a. | 11 | n. a. | n. a. | 12 | 21 | 21 |
| Turning circle (m) curb to curb*** | 15.6 | 16.3 | 18.2 | 18.4 | 20.1 | 17.3 | 18.9 | 21.2 | 23.9 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Cab | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L | S/M/L |
| Seats | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) | 2–6 (cab size L) |
| Battery capacity (Ah) | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V | 170 Ah 2 x 12 V/220 Ah 2 x 12 V |
| Tank volume (l) | 290/330/390/500 | 290–500 | 290–630 | 290–630 | 290–630 | 290–630 | 290–630 | 260–540 | 290–570 |
| AdBlue tank capacity (l) | 25/60 | 25/60 | 60/75 | 60 | 30–75 | 25/60 | 25/60 | 25–75 | 25–75 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Max. power according to DIN kW (hp) | 175 (238)–460 (625) | 175 (238)–390 (530)* | 200 (272)–460 (625) | 200 (272)–460 (625) | 240 (326)–460 (625) | 240 (326)–390 (530) | 265 (300)–460 (625) | 240 (326)–425 (578) | 240 (326)–460 (625) |
| Max. torque (Nm) | 1,100–3,000 | 1,000–2,330 | 1,100–3,000 | 1,100–3,000 | 1,700–3,000 | 1,700–2,600 | 1,800–3,000 | 1,700–2,800 | 1,700–3,000 |
| Max. permissible gross weight (t) | 18.0–22.0 | 16.5–22.0 | 25.0–37.0 | 26.0–36.0 | 26.0–41.0 | 32.0–40.0 | 32.0–37.0 | 32.0–48.0 | 32.0–48.0 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Euro norm | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI | III/V/VI |
| Shifting | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift | Powershift |
| Gearbox | G140-8/9.30-0.79; G211-12/14.93-1.0 | G140-8/9.30-0.79; G211-12/14.93-1.0 | G260-16/11.7-0.69; G230-12/11.7-0.78; G280-16/11.7-0.69; G281-12/14.93-1.0; G330-12/11.63-0.77 | G260-16/11.7-0.69; G280-16/11.7-0.69; G281-12/14.93-1.0; G330-12/11.63-0.77 | G 280-16/11.7-0.69; G 330-12/11.63-0.77 | G 230-12/11.7-0.78; G 280-16/11.7-0.69; G 281-12/14.93-1.0; G 330-12/11.63-0.77 | G 280-16/11.7-0.69; G 330-12/11.63-0.77 | G 230-12/11.7-0.78; G 260-16/11.7-0.69; G 280-16/11.7-0.69 | G 260-16/11.7-0.69; G 280-16/11.7-0.69; G 330-12/11.63-0.77 |
| Transfer gearbox | – | VG 1600-3W (permanent); VG 3000-3W (engageable) | – | – | VG 2800-3W/1.45-1.04 (permanent); VG 3000-3W/1.04 (engageable) | – | – | VG 2800-3W/1.45-1.04 (permanent); VG 3000-3W/1.04 (engageable) | VG 2800-3W/1.45-1.04 (permanent) |
| Cylinders | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Engine (Displacement (I)) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM936 (7.7); OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM473 (15.6) | OM470 (10.7); OM471 (12.8); OM460 (12.8); OM473 (15.6) |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | Single tyres/twin tyres | |
| CTIS | – | x | – | – | x | – | – | – | x | |
| Front axle load (min–max) (t) | 7.1–10.0** | 7.1–10.0** | 7.1–10.0** | 6.3–10.0** | 7.1–10.0** | 2 x 7.5–10.0** | 2 x 6.3–10.0** | 2 x 7.5–10.0** | 2 x 7.5–10.0** | |
| Rear axle load (min–max) (t) | 11.5–13 .0 | 9.0–13.0 | 2 x 7.1–13.0 | 2 x 9.5–10.5 | 2 x 9.0–16.0 | 2 x 7.5–13.0 | 2 x 9.0–13.0 | 9.0–16.0 | 9.0–16.0 |
| Type | 4x2 | 4x4 | 6x2 | 6x4 | 6x6 | 8x2 | 8x4 triple | 8x6 | 8x8 |
|---|---|---|---|---|---|---|---|---|---|
| Steering | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL | RL, LL |
| Roof hatch | x | x | – | – | x | – | – | x | x |
| Weapon holder | x | x | x | x | x | x | x | x | x |
| Blackout light | x | x | x | x | x | x | x | x | x |
| Fording capability (mm) | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
* depending on the engine
** via CTT with mileage limitation
*** with M cab Classic flatbed and standard tyres (315/ 70 R 22.5 or 315/ 80 R 22.5) depending on the load and load distribution
Vehicle concept

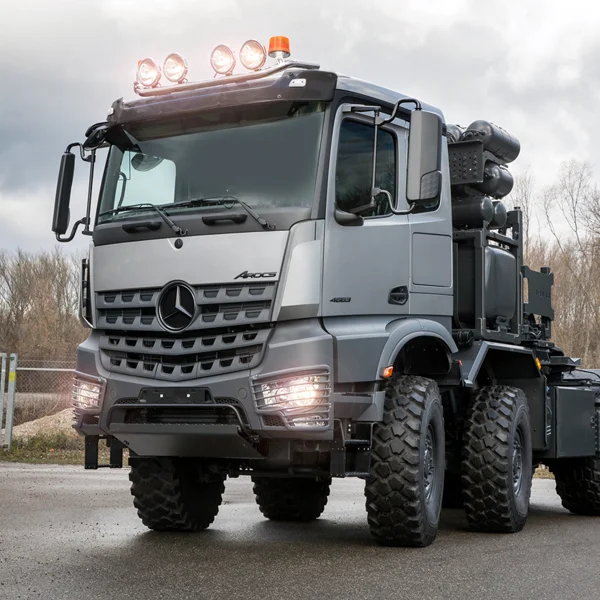

Heavyweight of Military Logistics.
The Arocs is the heavyweight of military logistics. As a heavy-duty tractor unit, it handles gross train weights of up to 250 tonnes – powered by six-cylinder in-line engines of up to 460 kW (625 hp). All-wheel drive, differential locks and heavy-duty hub reduction axles ensure off-road capability even under the most demanding conditions.
The Arocs heavy-duty tractor forms a robust backbone for basic logistics and central defence hubs, combining high payload with long-distance haulage competence. From the home base to the front line – ready when you are.
Wheelbases
Arocs variants.
Max. power
up to 460 kW (625 hp)
Max. torque
up to 3,000 Nm
Max. permissible gross weight
up to 41 t
Cylinders
6
Max. front axle load
10 t
Max. rear axle load
16 t
Permanent all-wheel drive for best-possible traction, heavy-duty hub reduction axles and differential locks that can be operated while driving – the Arocs heavy-duty tractor masters demanding operating conditions on and off road.
- Heavy-duty hub reduction axles for high ground clearance and durability
- Permanent all-wheel drive for best-possible traction
- Differential locks and inter-axle differential locks can be operated while driving
- Choice of single tyres for optimal off-road performance
- Special options available for extreme climatic conditions (air intake pre-heaters, high-performance radiators)
- Optional part-time front-wheel drive or hydraulic auxiliary drive at the front axle
Approach angle up to
28 °
Departure angle up to
32 °
Ground clearance up to
312 mm
Fording capability
700 mm
OM 460 LA
- Powerful and efficient 6-cylinder in-line engines, ranging from 265 kW (326 hp) to 460 kW (625 hp)
- Up to 3,000 Nm torque
- Strong engine brake, optional retarder
- Engine types available for low-quality fuel or kerosene
- Certified to Euro III, IV, V or VI emission standards
Mercedes-Benz PowerShift 3
- Automatic gear selection with fast gearshifts with only brief interruption of tractive power
- Power transmission drive programs for off-road operation, optimised for the specific GCW
- Option: turbo retarder clutch (TRC) for the following advantages:
- Up to 3,000 Nm for responsive starting/manoeuvring, no wear for a maintenance-free service life
- Full utilisation of engine power up to the traction limit (tyre/ground)
- Maximum braking performance of up to 720 kW
- Various cabs, three lengths and four roof heights
- 100% galvanised for long-lasting corrosion protection
- Fording capability: 700 mm
- Blackout lighting circuit: stealth lighting for covert operations
- Swivel-type roof hatch: plus special centre seat/standing platform
- Transport lugs: for air, rail and sea transport of vehicles
- Towing and recovery equipment: for self-recovery and assisting other vehicles
- ADR equipment: features for transport of hazardous goods; battery main switch included
- Weapon brackets: standardised mounts
- Spare wheel holder: integrated spare wheel storage
Optimum conversion ex-works for operation as a heavy-duty hauling/transport vehicle. Use of the dry clutch when driving continuously reduces fuel consumption and allows an emergency operating mode.
Options:
- Additional cooling system for safe operation at full power at high ambient temperatures
- Independent hydraulic supply for trailer
- Cardanic and height-adjustable semi-trailer couplings
- Fuel capacity of up to 1,200 l
